- Size:54.3 mm × 94.0 m
- Free to set up time, value, given time, time for warning sound, and
coin mode.
- AC 1250W DC 500Watt electrical relay capacity.
- Controls electrical devices ( TV, Massage chair..) power.
Description
| Input Voltage | DC+12V |
| Standby | Display shows:00:00, rely: Normal Open (NO) |
| Accumulated time | Yes, add time if receive signals again when time is running |
| Max current load | 15A |
| How it works |
| Mode 1 | Time runs down after receive signals-> Display shows remaining
time and supply power to device-> it cuts off power after time
runs out |
Mode 2 (Connect a button) | Display shows remaining time after receive signals-> push button
start-> time runs down and supply power to device-> it cuts
off power after time runs out |
Pause (connect a button) | Push button pause: it cuts off power when pause, display shows
remaining time. Re-supply power after push button pause again |
| Operating Mode | Please reference to page 2 |
Connection and Position

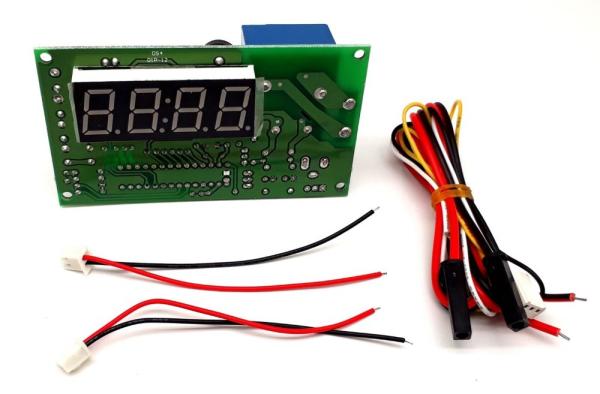

1: Display
2:Output: Switch Type- Control “N” or “-”.
3: DC Jack-5.5mm*2.1mm
4: YELLOW: DC12V, WHITE: input signal, BLACK: GND
5: Push button for coin mode 01:02
6: Pausing
7-10: Button S2, S1, S3, and S4
NOTE: Free to connect DC12V to either No. 3 or No.4.
Max Time:99:59 Display: 99:59
A: 2 digit: either HOUR or MINUTE
B: 2 digits: either MINUTE or SECOND
Please following page to adjust Time type.
Setting
Please follow CODE ON DISPLAY and use button "S1" and "S2" to set
up number
- INPUT SIGNAL QUANTITY AND TIME
- Please press button "S4". “B” flashes. Please set up INPUT SIGNAL
QUANTITY to active device (01-50).
- Please press button "S4", “A” flashes. Please set up TIME (01-99).
- Please press button "S4", “B” flashes. Please set up TIME (01-99).
- Please press button “S4” 4 TIMES.
- Please set up TIME for Warning Sound.
- Please press button "S4" to finish.
- GIVEN TIME: Add time by free if input signals reach SETTING RATE during time
is running.
Example Setting: input signal to active device: 01, input signals for given time:
03 give time: 02:10
Add time “02:10” free if receive “3 signals” during time is
running.
- Please press button "S4" 4 TIMES. “B” flashes. Please set up RATE
OF INPUT SIGNAL QUANTITY.
- Please press button "S4", “A” flashes. Please set up GIVEN TIME.
- Please press button "S4", “B” flashes. Please set up GIVEN TIME.
- Please press button "S4" to finish.
Please follow table to set up operating function:
- Please hold on button "S1" and "S2" simultaneously for 3 seconds to
get into MODE SETTING.
- Please use button "S1" and button "S2" to set up number for CODE
- Please press button "S4" to switch to next code
| Function | Code on Display | Description |
| A | B |
| Running Time | 01 | 01 | Time runs down without pressing button |
| 02 | Time runs down by pressing button |
| Time Type | 02 | 03 | MINUTE: SECOND |
| 04 | HOUR: MINUTE |
| Memory | 03 | 05 | Yes: Remaining time keep running after power off and on |
| 06 | No: Standby power off and on |
| Back to standby | 04 | 1-30 | user has no action after push buttons or receive signals in setting
time |
| Default: 01-03: Bold and base line. 04: not use the function. |
Connection Example
